Quartz Crystal Microbalance
QCM200 5 MHz QCM

QCM200 ... from $2995
×

QCM200 Quartz Crystal Microbalance

Front Panel

×

QCM200 Quartz Crystal Microbalance

Rear Panel

(Click to enlarge)
  • Measures frequency and resistance
  • Analog output for potentiostats
  • Transformer-isolated crystal
  • Simple shunt-capacitance cancellation
  • External 10 MHz input
  • Windows software
  • Overview

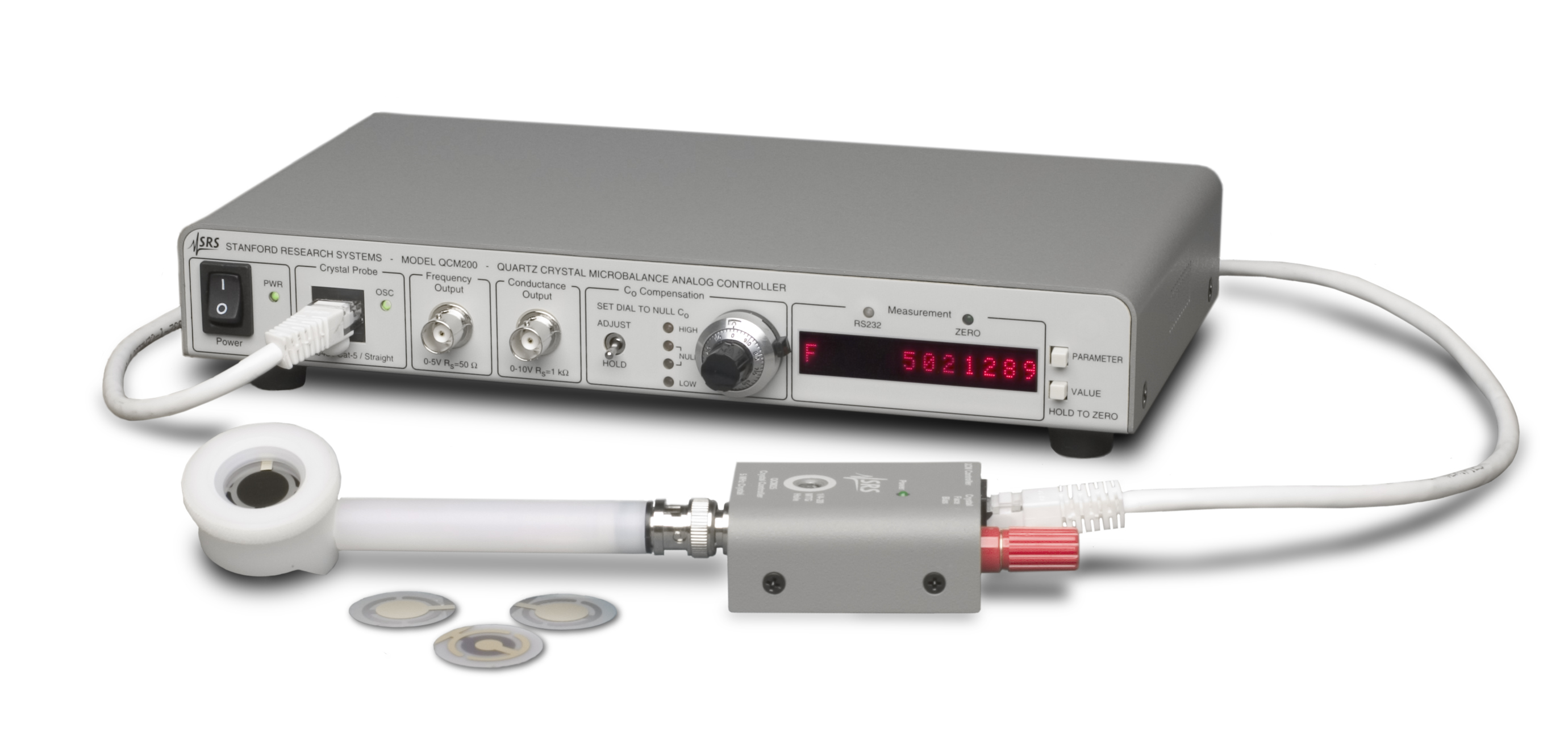

    The QCM200 Quartz Crystal Microbalance measures mass and viscosity in processes occurring at or near surfaces, or within thin films. This system includes a controller, crystal oscillator electronics, crystal holder, three quartz crystals, and Windows software.
    Quick Links
    Buy Online   Get a Quote

    QCM200 Quartz Crystal Microbalance

    The QCM200 Quartz Crystal Microbalance measures mass and viscosity in processes occurring at or near surfaces, or within thin films. This system includes a controller, crystal oscillator electronics, crystal holder, three quartz crystals, and Windows software.

    The instrument reads the resonant frequency and resistance of a 5 MHz, AT-cut quartz crystal. The resonant frequency changes as a linear function of the mass of material deposited on the crystal surface. The resistance at resonance changes with the viscosity / elasticity of the material (film or liquid) in contact with the crystal surface.

    As a gravimetric instrument, the QCM200 can measure mass ranging from micrograms to fractions of a nanogram. Detection limits correspond to submonolayers of atoms. Observations of conformational changes, such as phase transitions, swelling, and cross-linking, can easily be made.

    Specifically designed to handle heavy loads (up to 5 kΩ), the instruments will lossy films and highly viscous liquids.

    Self-Assembled Monolayer

    ×

    QCM200

    Self-Assembled Monolayer

    BSA Adsorption to Gold

    ×

    QCM200

    BSA Adsorption to Gold

    The QCM200 is a stand-alone instrument with a built-in frequency counter and resistance meter. Series resonance frequency and resistance are measured and displayed, and there is an analog output proportional to frequency which can be used to interface with a potentiostat. The QCM200 can be operated from the front panel or a PC using the RS-232 interface. Windows software is provided for real-time data acquisition, display, analysis and storage. Both frequency and resistance trends can be viewed. User-tags are provided to time-stamp important events.

    The stability and accuracy of the QCM200 are ideal for most experiments. For special applications requiring optimum long-term frequency stability, a precision timebase, such as the FS725 Rubidium Frequency Standard, can be connected to the external 10 MHz input.

    Immunosensor - Antigen-Antibody interaction

    ×

    QCM200

    Immunosensor - Antigen-Antibody Interaction

    QCM Electronics

    A unique automatic gain control circuit provides the quartz crystal with the required signal amplitude to overcome viscoelastic losses and achieve series resonance. It also monitors the energy dissipated by the sensor, which is used to determine the series resistance of the crystal. The controller provides power to the crystal oscillator electronics, and includes a potentiometer for canceling shunt capacitance. Proper capacitance cancellation is required to assure true series resonance operation of the crystal oscillator, and to eliminate frequency and resistance errors.

    In the QCM200, the digital controller also contains a frequency counter with 0.01 Hz resolution for accurate frequency measurements, and a resistance meter with 5 digits of resolution covering a range of 0 to 5000 Ω

    Crystal Holder with Flow Cell

    ×

    QCM200

    Crystal Holder with Flow Cell

    Crystals, Holder and Flow Cell

    The QCM200 uses a 5 MHz, 1" diameter, AT-cut quartz crystal wafer with circular electrodes on both sides. Crystals are available in a variety of materials. The crystal holder is a rugged, compact, easy to use fixture. The holder and all crystals may be used in liquid or gas environments.

    An optional axial flow cell adapter attaches to the standard crystal holder. This provides an easy way of interfacing the QCM to a flow injection analysis system.

    EQCM

    EQCM

    ×

    QCM200

    EQCM - Frequency Measurement

    For EQCM applications, an analog output proportional to frequency shift may be directly connected to a potentiostat or galvanostat. Only the front-surface electrode of the crystal is exposed to the solution. This electrode is also transformer isolated, as required for EQCM operation.

    The figure below illustrates a typical EQCM experiment. The frequency analog output of the QCM controller is connected to the potentiostat A/D input. The potentiostat digitizes the voltage, and it's software displays relative frequency changes synchronous with the electrochemical data. The versatile QCM200 can be easily integrated into any custom 5 MHz crystal based EQCM setup.

    In the Lab

    The QCM200 is a valuable research tools for applications ranging from pure surface science to biochemistry. Quartz crystals can be pre-coated with any thin film material including organic polymers, hydrogels, composites, ceramics, biomolecules, bacteria and living cells. This provides unlimited potential for the development of novel gas and biological sensors.

    The quartz crystal microbalance is an essential addition to any biological laboratory. The data from a QCM perfectly complements that obtained from other techniques, such as surface plasmon resonance (SPR) and atomic force microscopy (AFM), aiding in the analysis of complex biological interactions.

    Software

    ×

    QCM200

    QCM200 Data Acquisition Software

    QCM200 Software

    A Windows software program is included to facilitate remote operation and simplify data acquisition.

    Applications

    Immunosensors
    Sorption sensors
    Moisture analyzers
    Particulate monitors
    Contamination monitors
    Electrovalency measurements
    Hydrogen absorption on metal films
    Bubble formation
    Redox and conductive polymer research
    Double-layer characterization
    Corrosion studies
    Surface oxidation
    DNA and RNA hybridization studies
    Antigen-antibody reactions
    Protein adsorption
    Detection of virus capsids, bacteria, mammalian cells
    Biofouling and antifouling
    Biomembranes and biomaterials
    Protein-protein interactions
    Self-assembled monolayers (SAMs)
    Molecularly imprinted polymers (MIPs)
    Langmuir/Langmuir-Blodgett films
    Laser ablation, desorption and breakdown studies
    MEMS nanomaterials
    Intelligent biomaterials.
