High Pressure Gas Analyzer
UGA Series Up to 300 amu gas analyzers

UGA series ... from $28,000
×

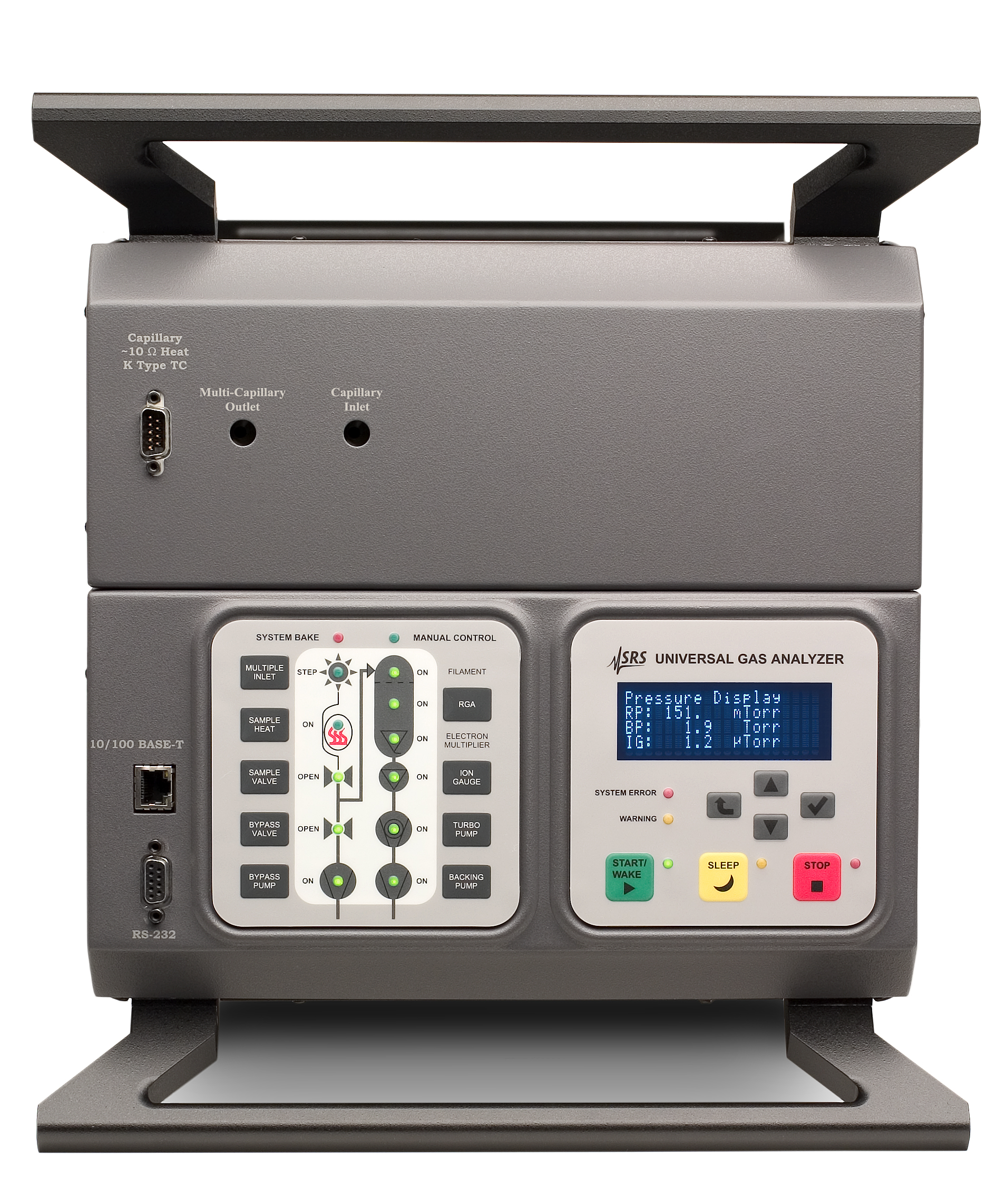

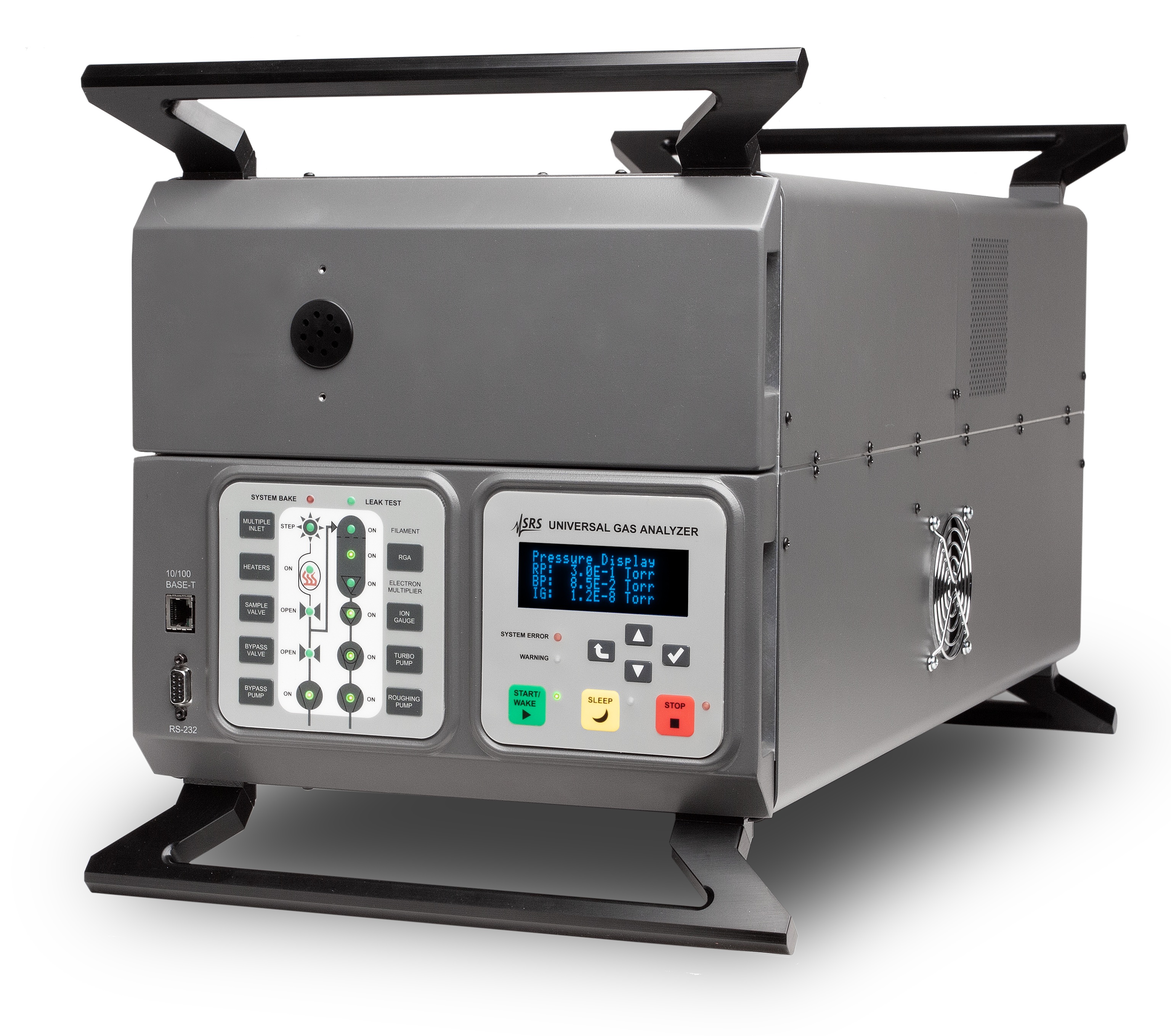

UGA Series Gas Analyzers

Side View

×

UGA Series Gas Analyzers

Rear Panel

(Click to enlarge)
  • Atmospheric pressure to UHV
  • 100, 200 and 300 amu systems
  • Fast response time
  • Windows software
  • Stand alone leak detection
  • Electron multiplier
  • Measure up to 100% H2 with
         UGA-Hydrogen (UGA w/opt. 3)
  • Low cost solutions (ULT)
  • Overview
    The UGA and ULT Series Universal Gas Analyzers are state-of-the-art bench top mass spectrometers that operate from above atmospheric pressure to UHV. They are ideal for on-line monitoring and analysis of gas mixtures. Whether you’re measuring trace-level contaminants, solvents, hydrocarbons, refrigerants or corrosive gases, your Universal Gas analyzer is up to the task.
    Quick Links
    Buy Online Get a Quote

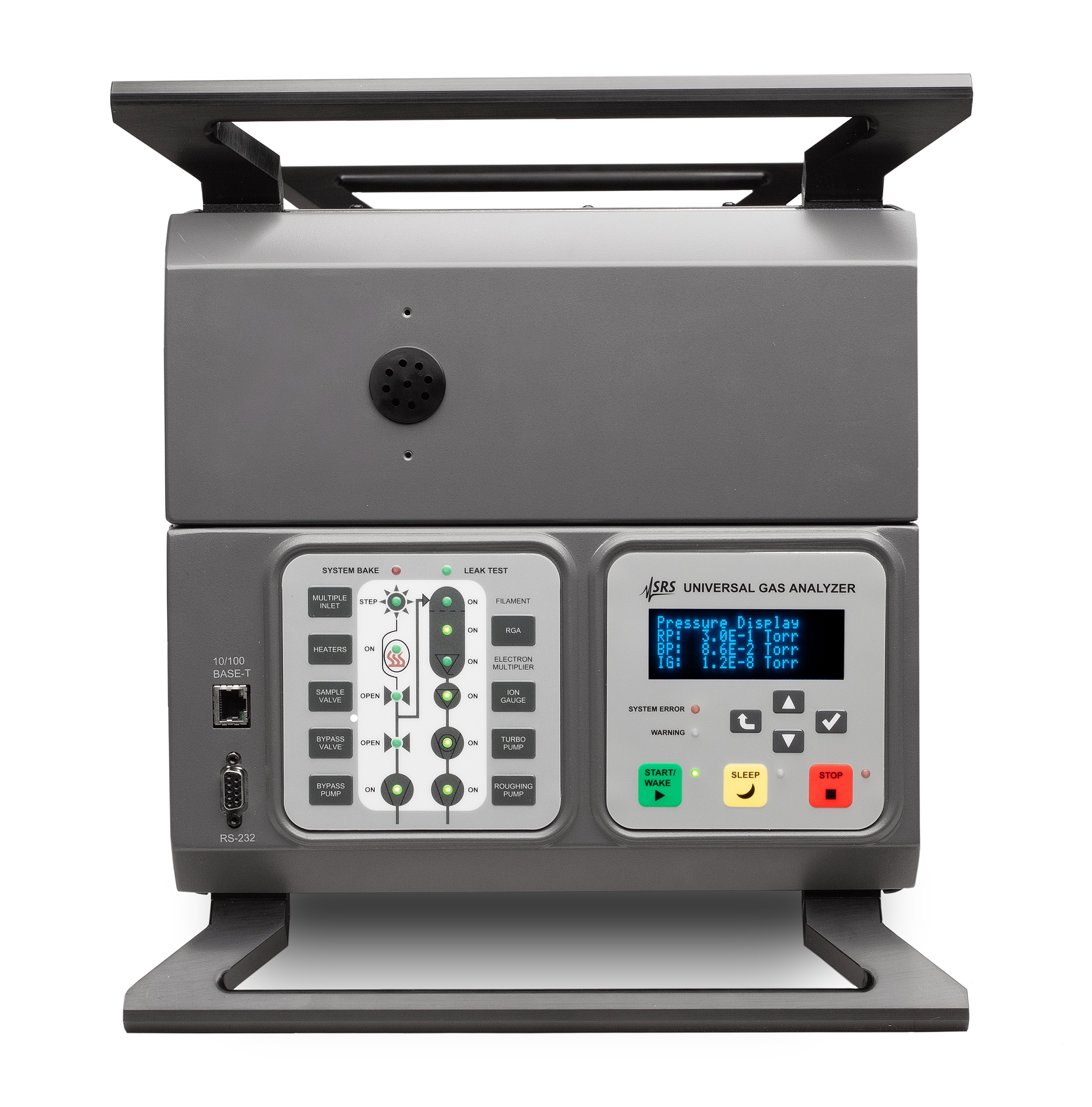

    UGA Series
    Atmospheric Pressure Analyzers

    UGA series ideal for corrosive gases

    UGA-Hydrogen series (UGA w/opt. 3) ideal for high concentration of H2

    ULT series low cost solution (starting at $28,000)

    The UGA and ULT Series Universal Gas Analyzers are state-of-the-art bench top mass spectrometers that operate from above atmospheric pressure to UHV. They are ideal for on-line monitoring and analysis of gas mixtures. Whether you’re measuring trace-level contaminants, solvents, hydrocarbons, refrigerants or corrosive gases, your Universal Gas analyzer is up to the task.

    UGA applications include semiconductor exhaust gas monitoring, glove box analysis, fuel cell studies, Freon detection, pollution monitoring, fermentation studies and general R&D vacuum analysis.

    These analyzers are also simple to operate and maintain. The chassis design allows the instrument to be operated vertically or horizontally, and both front-panel and computer operation are supported. The ULT series is a simplified design for less demanding applications.

    Principle of operation

    UHV Applications

    ×

    UGA Series Gas Analyzers

    UHV Applications

    The UGA system uses a two-stage pressure reducing inlet to sample gases at atmospheric pressure. After the pressure is reduced to around 10-6 Torr, the gas stream is sent to a mass spectrometer (residual gas analyzer - RGA) which measures the concentration of each mass of interest.

    The UGA Windows software provides a graphical user interface for complex graphing and data analysis. The software also allows remote control of the system’s valves, heaters and pumps.

    For gas sampling in the range of 10-1 to 10-4 Torr, the vacuum inlet assembly is used. Simply attach a 2 ¾” CF to ¼” tube adapter to one of the CF ports, and adjust the length of the tube for the inlet pressure.

    Direct access to the RGA is provided for UHV applications (<10-4 Torr). Any of the 2 ¾” CF ports of the vacuum inlet assembly can be used to connect to your vacuum chamber.

    Multi-capillary inlet (UGA series only)

    Direct Connection

    ×

    UGA Series Gas Analyzers

    Direct Connection

    An optional multi-port sampling inlet consists of 16 manifold-mounted valves that can be used with a variety of capillaries.

    Heated chamber (UGA series only)

    The UGA system is equipped with individual heaters for the vacuum chamber (including RGA), the turbo pump connector, and the vacuum inlet assembly. During bakeout, the system can be heated to 120 °C.

    Dual-diaphragm pumps (UGA series only)

    Separate diaphragm pumps are used to handle the bypass flow and backing of the turbo pump. This architecture allows corrosive gases (chlorine, fluorine, etc.) to be analyzed without damaging the RGA and turbo pump, and virtually eliminates the problem of back streaming. Measuring high concentrations of low mass gases (hydrogen, helium, etc.) is no longer a problem.

    Turbo pump venting (UGA and ULT)

    An optional valve and inlet to the turbo pump’s exhaust is available for users who wish to vent with dry nitrogen (or other inert gases). This keeps the pump free from water and other contaminants present in air.

    Using your Universal Gas Analyzer

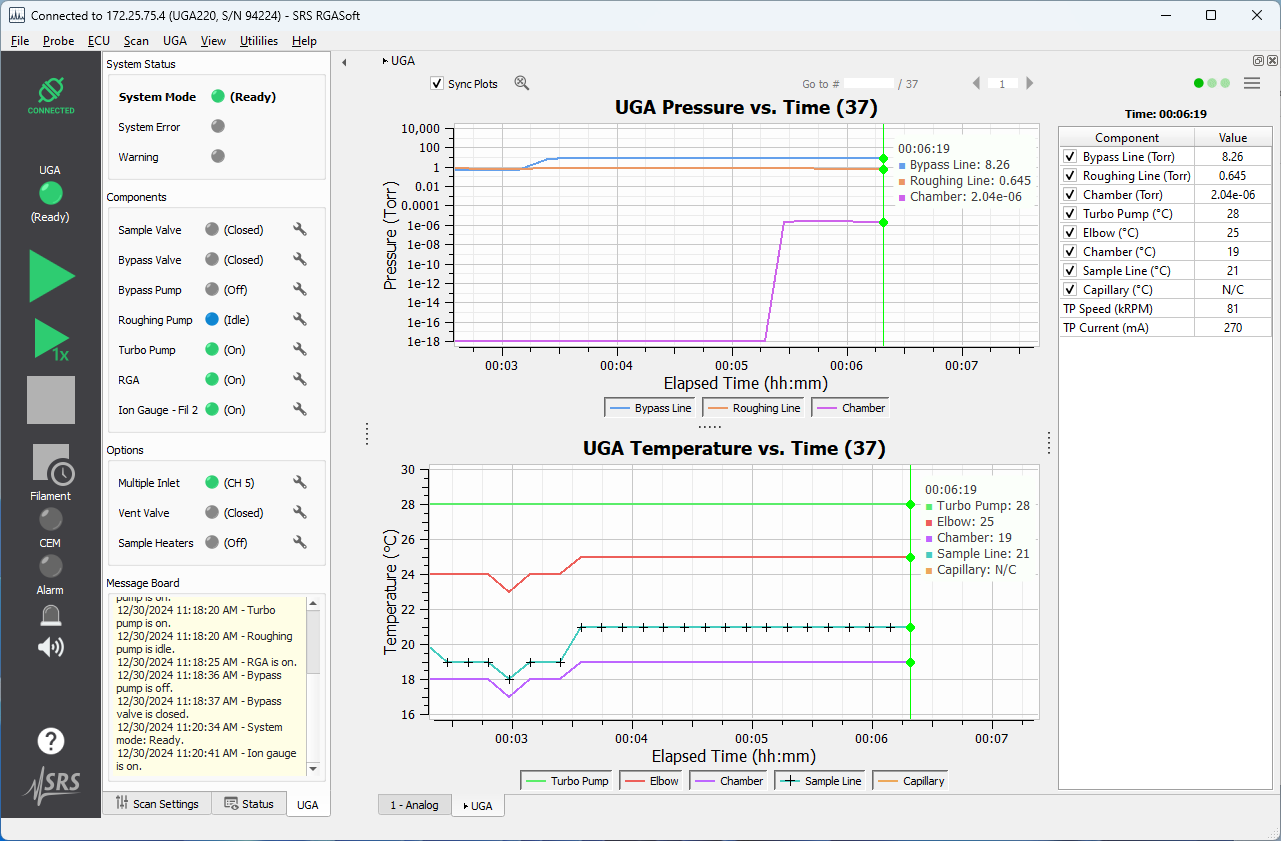

    Software System Control

    ×

    UGA Series Gas Analyzers

    Software System Control

    The UGA system can be controlled from the front-panel or from a computer. A choice of manual or auto-control of all system components is provided.

    Data is measured and displayed using the UGA software. The intuitive user interface allows measurements to be made quickly and easily. Data is captured and displayed in real-time, or scheduled for acquisition at a specified time.

    Features include analog and histogram scan modes, pressure vs. time plots, leak detection, gas library, and on-line help.

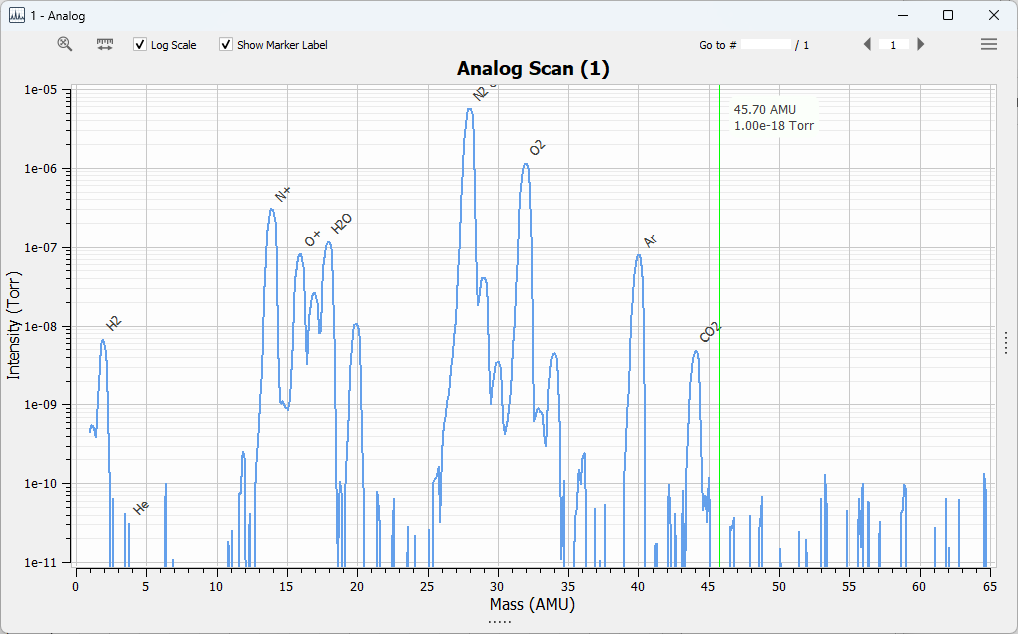

    Analog Mode

    ×

    UGA Series Gas Analyzers

    Analog Mode

    RGA parameters can also be controlled and monitored through a high-level ASCII command set. Standard RS-232 and Ethernet interfaces are used as the data link to your PC.

    Best value

    The UGA Analyzers offer the best value of any system currently available. They provide more performance, better features, and are priced well below the competition.
