Temperature Controller
CTC100 Cryogenic temperature controller

CTC100 ... from $2600
×

CTC100 Cryogenic Temperature Controller

Front Panel

×

CTC100 Cryogenic Temperature Controller

Rear Panel

(Click to enlarge)
  • 4 temperature sensor inputs
  • 2 powered outputs
  • 4 analog voltage outputs
  • Up to 6 feedback control loops
  • 4 analog I/O channels
  • 8 digital I/O channels
  • Graphical touchscreen display
  • Data logging
  • User programs (macros)
  • USB, Ethernet, RS232 & GPIB
  • Overview
    Introducing the new CTC100 Cryogenic Temperature Controller — a high performance instrument that can monitor and control temperatures with millikelvin resolution.

    The CTC100 Cryogenic Temperature Controller is configured to suit a wide range of research and industrial applications. The system consists of four sensor inputs, two powered and four analog voltage outputs, and up to six feedback control loops.
    Quick Links
    Buy Online   Get a Quote

    CTC100 Cryogenic Temperature Controller

    Introducing the new CTC100 Cryogenic Temperature Controller — a high performance instrument that can monitor and control temperatures with millikelvin resolution.

    The CTC100 Cryogenic Temperature Controller is configured to suit a wide range of research and industrial applications. The system consists of four sensor inputs, two powered and four analog voltage outputs, and up to six feedback control loops. Four general purpose analog and eight digital I/Os are available, along with autotuning functions for setting PID parameters automatically.

    Sensor Inputs

    The CTC100 offers four temperature inputs that can read RTDs, thermistors, and diodes. Each temperature input channel has its own 24-bit ADC with eleven input ranges, and is equipped with its own independent excitation current source.

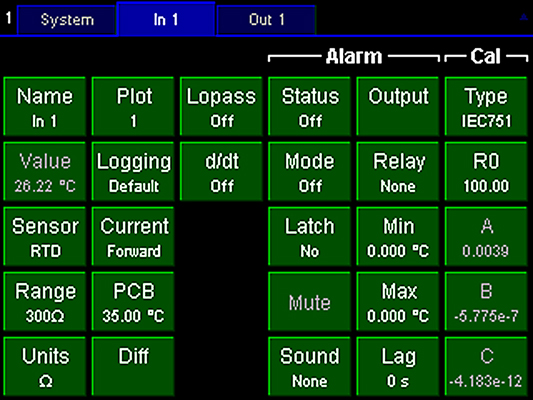

    Channel Setup Menu

    ×

    Channel Setup Menu

    CTC100

    Standard calibration curves for a variety of sensors are included, and custom calibration curves of up to 200 points each can be entered. Each sensor input has high and low level or rate-of-change alarms. Sensor inputs can be lowpass-filtered to reduce noise, and/or differenced with another channel.

    Powered and Analog Voltage Outputs

    The CTC100 has two heater outputs that can each deliver up to 100 W of power to a 25 Ω heater. In addition, four analog voltage I/O channels can be used to drive heaters with the help of an external amplifier.

    Select Menu

    ×

    Select Menu

    CTC100

    PID Feedback Control

    With up to six feedback control loops available, the CTC100 can provide precise temperature control of each of its heater outputs by continually adjusting the heater power. Any of the CTC100’s channels can be selected as the input for each feedback loop. Feedback time constants can be adjusted between 200 ms and 10 hrs.

    Up to ten sets of PID parameters can be stored for each channel. Setpoints can be ramped at a fixed rate (or with a user program), set from an analog input.

    Numeric Display

    ×

    Numeric Display

    CTC100

    Analog and Digital I/Os

    The CTC100 comes with four general-purpose ±10 V voltage I/O channels read by a 24-bit ADC. It also has eight digital I/O channels that can interact with user programs.

    Four 5 A relays can be used for process control. Three virtual channels, not connected to any physical input, allow calculated values (such as the difference between two channels, or a value calculated by a user program) to be displayed, graphed, and logged.

    Graphical Display

    ×

    Graphical Display

    CTC100

    Numeric and Graphical Display

    The CTC100’s color LCD display can show any combination of temperature measurements and heater outputs on graphs or numeric displays. Up to eight channels can be plotted either on a single graph with a common Y axis, or on separate graphs with independent Y axes. Touchscreen operation makes the instrument versatile and easy to use.

    Data Logging

    Up to 4096 readings per channel can be logged to the CTC100’s internal memory. For longer-term storage, data can be logged to standard USB memory sticks or hard drives.

    Data logged to USB devices can be transferred to a computer by plugging the USB device into a PC. Windows applications are included to graph CTC100 log files and to convert them to various ASCII text formats.

    Computer Communications

    Each of the CTC100’s front-panel controls has a corresponding text command that can be sent over USB, Ethernet, and either RS-232 or an optional GPIB interface.

    When the USB interface is used, the CTC100 appears on the computer as a standard COM port and can be controlled by any software that is compatible with an RS-232 port.

    User Programs

    User programs (macros), consisting of one or more remote commands, can be uploaded to the CTC100. This is done by either sending them through one of the communications ports or by saving them as text files on a USB memory device and then plugging the device into the CTC100. Program macros can also be entered and edited from the front panel.
