SIM964 1 MHz Analog Limiter
|
The SIM964 Analog Limiter provides upper and lower voltage limits for conditioning dynamic signals. Limits are set between ±10 V with 10 mV resolution. |
SIM964 1 MHz Analog Limiter
SIM964 1 MHz Analog Limiter
SIM964
The SIM964 Analog Limiter provides upper and lower voltage limits for conditioning dynamic signals. Limits are set between ±10 V with 10 mV resolution.
SIM964 Specifications |
|
| Limit settings | ±10 V (both upper and lower) |
| Resolution | 10 mV |
| Bandwidth | 1 MHz |
| Limit type | Soft limit (100 mV range) |
| Input impedance | 1 MΩ |
| Output noise | <400 µVrms |
| THD | 0.01 % (80 dB) at 1 kHz |
| Slew rate | 20 V/µs |

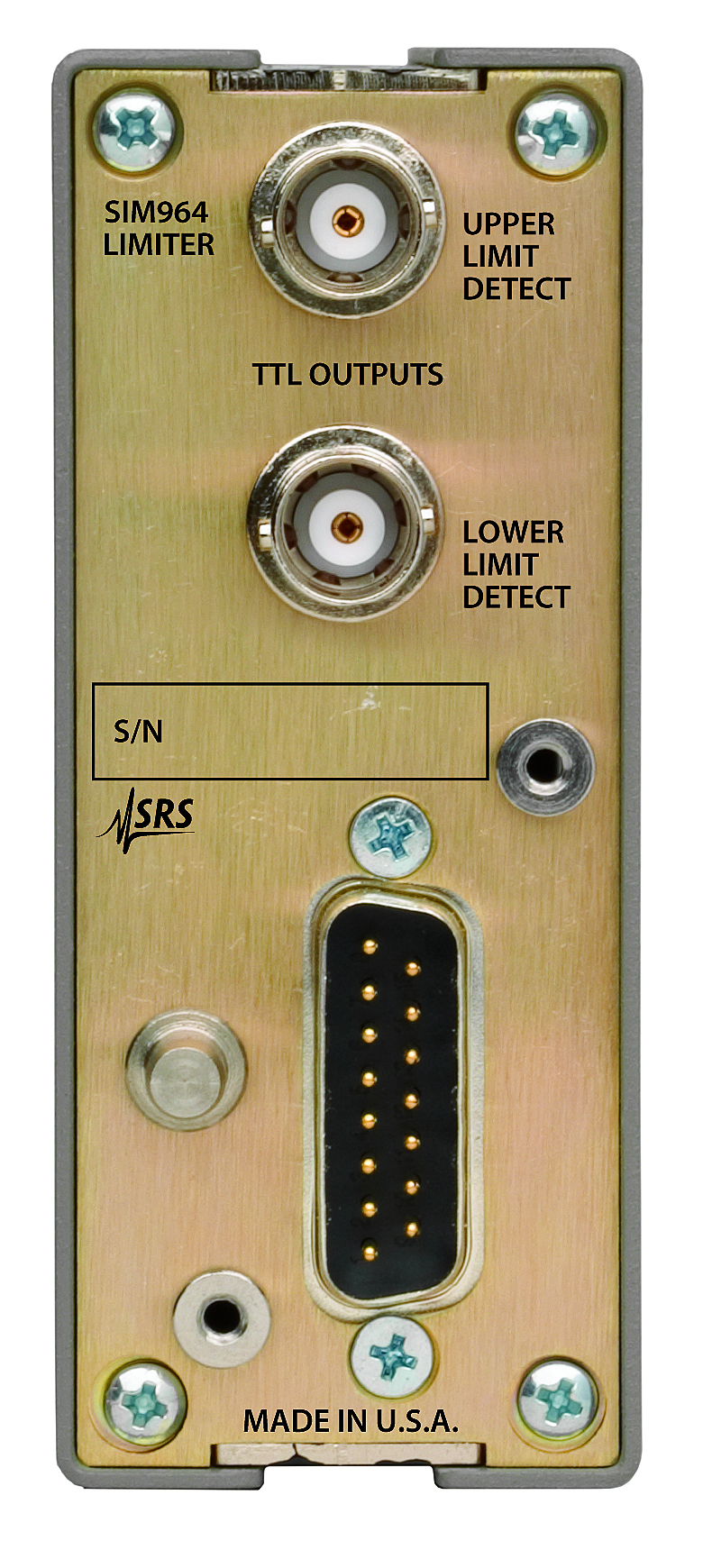

| Limit detect | TTL level signals (rear-panel BNC connectors) are low when upper or lower limits are exceeded. |
| Operating temperature | 0 °C to 40 °C (non-condensing) |
| Interface | Serial via SIM interface |
| Connectors | BNC (2 front, 2 rear) DB15 (male) SIM interface |
| Power | Power supplied by the SIM900 Mainframe, or optionally by a user-supplied DC power supply (±15 V and +5 V). |
| Dimensions | 1.5" × 3.6" × 7.0" (WHL) |
| Weight | 1.5 lbs. |
| Warranty | One year parts and labor on defects in materials and workmanship |
